Cyclone® KEY

18F Access Granted.

  • PET Imaging
  • 18F
  • 13N
  • 11C
  • Compact and fully automated cyclotron

    Cyclone® KEY accelerates protons up to 9.2 MeV, enabling simple and efficient multiple isotopes production.

  • Smallest footprint

    It offers one of the smallest footprints of all clinical cyclotrons at comparable performance levels, making it easy to install and operate.

Get in touch for personal advice
  • Cyclone KEY, 18F granted access
  • Cyclone KEY

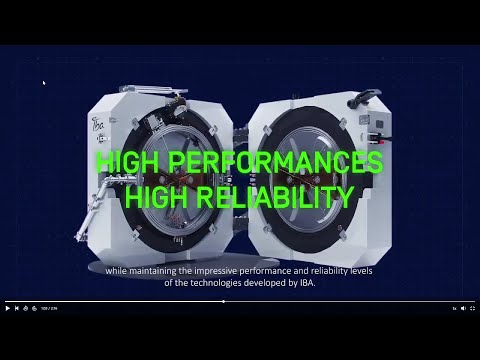

  • cyclotron Cyclone KEY inside
  • Cyclone KEY, 18F granted access
  • Cyclone KEY
  • cyclotron Cyclone KEY inside
  • image
  • Energy

    9.2 MeV

  • Vault dimensions

    3.15 x 3.15 x 2.2 m

  • Target

    Liquid, gas

  • Production power

    Up to 100 µA

  • Exit ports

    1 exit (up to 3 targets)

  • Production output

    Up to 3Ci in 2 hours

  • Cyclotron dimensions

    1.5 x 1.4 x 1.35 m

  • FDG doses

    Up to 30 FDG doses per run
    Based on 4 Ci (148 GBq) of 18F end of beam and 70% yield of chemistry

  • Reliable

    IBA has proven expertise from historical leadership on complete energy spectrum.

  • Small footprint

    Thanks to its small size, the overall facility footprint is significantly reduced (80 m2) minimizing your initial investment.

  • Impressive performances

    Cyclone® KEY can generate up to 30 FDG doses in a 2-hours run with chemistry produced via a Synthera® platform.

  • Ready when you are

    IBA promises that your cyclotron is available when you are ready with your building.

curve lines

  • Interested to learn more about the Cyclone® KEY?

    Download product information.

    Find out everything you need to know about the Cyclone® KEY.

IBA low & mid-energy cyclotrons installed across the world

    Low & mid-energy cyclotron
curve lines
Quote illustration image
Vincent Hellas
Vincent Hellas
Product Manager
IBA RadioPharma Solutions, Belgium

The Cyclone® KEY enables compact, efficient, and safe PET isotope production.

"The Cyclone® KEY is designed to expand access to PET radioisotopes while simplifying installation, operation, and maintenance, with a strong focus on minimizing total cost of ownership. The system enables safe, user-friendly operation and can accommodate up to three targets 18F, 13N or 11C (gas), supporting applications in oncology as well neurology and cardiology. As the most compact cyclotron in the IBA RadioPharma Solutions portfolio, the Cyclone® KEY can be installed in either a conventional concrete vault or a self-shielded configuration, making it suitable for a wide range of clinical environments."

  • IBA Discover Cyclone KEY
    • 19/04/2023
    Cyclone® KEY, F-18 access granted

    Cyclone® KEY’s design originates from the well-established Cyclone® KIUBE, the highest market standards in term of radioisotopes production capacity and reliability. The Cyclone® KEY is a compact and fully automated proton acceleration cyclotron (up to 9,2 Mev) enabling a simple yet efficient multiple isotopes production. It has one of the smallest footprints of all clinical cyclotrons to enable easy installation and operation. Thanks to Cyclone® KEY compact size, our experts have managed to minimize the size of the (c)GMP radiopharmacy down to 80 m². By reducing your initial investment and allowing you to go for optimized production tailored to your size, IBA makes PET technology affordable for everyone, everywhere.

    More details
  • IBA Discover Cyclone KEY
    • 20/04/2023
    Discover the Cyclone® KEY with IBA experts

    Cyclone® KEY’s design originates from the well-established Cyclone® KIUBE, the highest market standards in term of radioisotopes production capacity and reliability. The Cyclone® KEY is a compact and fully automated proton acceleration cyclotron (up to 9,2 Mev) enabling a simple yet efficient multiple isotopes production.


    It has one of the smallest footprints of all clinical cyclotrons to enable easy installation and operation. Thanks to Cyclone® KEY compact size, our experts have managed to minimize the size of the (c)GMP radiopharmacy down to 80 m². By reducing your initial investment and allowing you to go for optimized production tailored to your size, IBA makes PET technology affordable for everyone, everywhere.

    More details
  • IBA Discover Cyclone KEY
    • 24/01/2022
    Unveiling of the Cyclone® KEY at Arab Health

    IBA Launches Compact Low-Energy Cyclotron, Cyclone® KEY, new accelerator provides increased access to diagnosis solutions and enables in-house production of radiopharmaceuticals.


    24 January 2022 - IBA the world leader in particle accelerator technology and the leading provider of radiopharmaceuticals production solutions, today announces that it has launched a new low energy and compact size cyclotron, the Cyclone® KEY. The new machine will enable small and medium sized hospitals to produce their own radiopharmaceutical products in-house, whilst providing more widespread global access to diagnostic solutions in oncology, neurology and cardiology. The Cyclone® KEY was showcased on Monday 24 January 2022 during Arab Health 2022, an annual meeting in Dubai, UAE.
